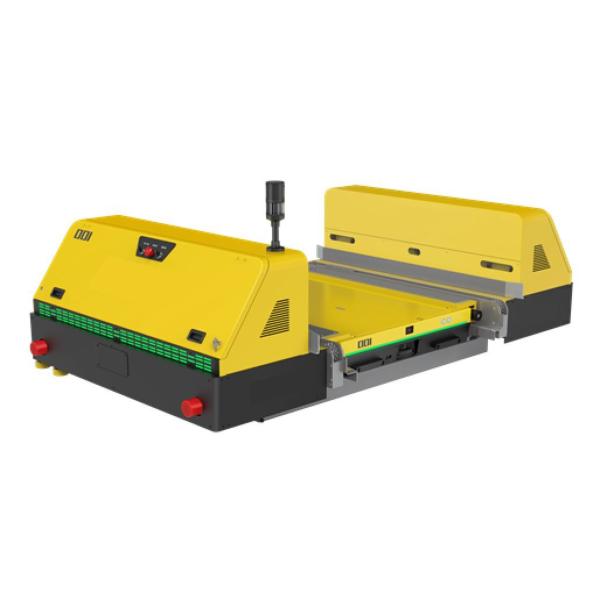

Laser Positioning Warehouse Shuttle System Maximum Load 1500KG

Name: Laser Positioning Warehouse Shuttle System Maximum Load 1500KG
Brand: Kinte
Price: 1 USD

Brand Name : Kinte

Model Number : Customized

Certification : ISO9001/FEM/ISO14001/OHSAS 18001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : Strong production capacity

Delivery Time : According to customer's requirement

Packaging Details : Packed with plastic films and wrap with strips

Model : Shuttle Carrier

Maximum speed : 60 m/min

Power supply mode : Lithium battery power supply

Working time : 8~10 hours

Positioning method : laser positioning

Positioning accuracy : 3mm

Contact Now

Laser Positioning Warehouse Shuttle System Maximum Load 1500KG

Shuttle Carrier Maximum load 1500KG Pallet Intensive Warehouse Shuttle System

A track perpendicular to the roadway is set at the corresponding position of each layer at the front end of the common shuttle racking system. There is a shuttle car that can shuttle back and forth, and the shuttle plate (ie, sub-car) can drive into this shuttle car. When transported to this shuttle, the second is that instant charging can be performed on this shuttle. This shuttle is called the shuttle carrier vehicle. The shuttle carrier vehicle can transport the goods out and transfer them to the elevator or conveyor. Such a system It is called the automatic vertical warehouse racking system of the shuttle carrier. At the same time, the shuttle carrier can also transfer the shuttle to different lanes. Such a high-density storage system is called a shuttle carrier ASRS.

Technical Parameter

Maximum speed	60 m/min
Power supply mode	Lithium battery power supply
Working time	8~10 hours
Charging	Online automatic charging during idle time
Positioning method	laser positioning
Positioning accuracy	3mm
Maximum load	1500KG
Core component	MOTEC motor
PLC	Siemens
Function	The shuttle car can realize the automatic deposit and withdrawal of goods, the standard shuttle car, 8-wheel walking
